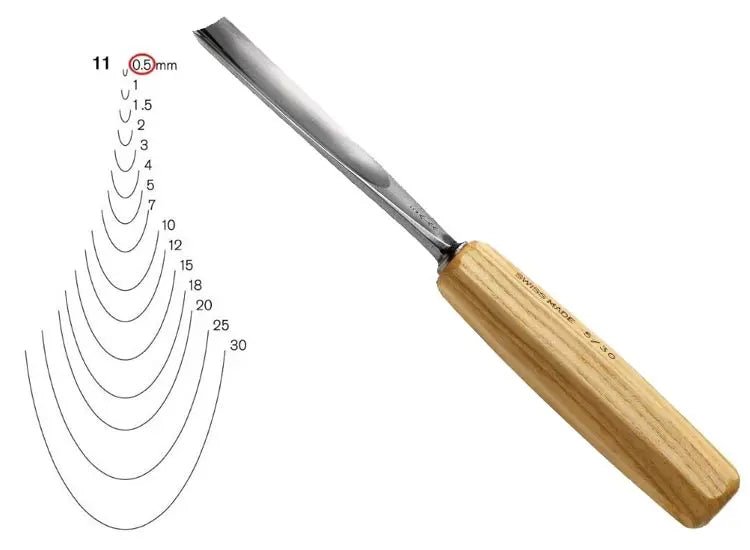

Pfeil Series No. 11 Straight Gouge, Swiss Made

Name: Pfeil Series No. 11 Straight Gouge, Swiss Made
Brand: Pfeil
SKU: 11/1
Price: 31,20 EUR
Availability: InStock

Pfeil Series No. 11 Straight Gouge, Swiss Made

31,20€

Tax included. Shipping calculated at checkout.

Straight gouge U-shaped winged series no. 11 Pfeil, Swiss made

A straight, curved gouge with a U-shaped profile. Its high wings allow for deep penetration into the wood without tearing. This gouge, also called a "bretter" gouge because it is used to work the veins of plant motifs in ornamentation, veins described as "brettered." This No. 11 is ideal for chiseling fine details such as hair.

Swiss quality : steel manufactured in Switzerland and factory sharpened for an impeccable edge.
Wide range of cutting edge widths : from 0.5 mm to 30 mm to suit all stages of carving.
Ready to use : factory sharpened and honed for immediate cutting performance.
Versatile and precise : suitable for both delicate areas and larger material removals.

Ref. 11/1

En ligneStock faible
Gaignard Millon ParisEn stock

Technical specifications

Brand/Manufacture: Pfeil Swiss made
Sharpening: Factory sharpened — ready to use
Blade shape: straight, flat blade
Material: High-grade tool steel
Handle: oiled ash wood
Size variations:
0.5, 1, 1.5, 2, 3, 4, 5, 7, 10, 12, 15, 18, 20, 25 and 30 mm

Usage & Maintenance

Ultra-fine details: very narrow variants (0.5 – 5 mm) for delicate areas and precise finishes.
Moderate removal: sizes 7 – 12 mm suitable for sculpted transitions and intermediate surfaces.
Open volumes: sizes 15 – 30 mm perfect for releasing more material and working on larger surfaces.
Suitable for sculptors, cabinetmakers and woodworkers working on technical or artistic pieces.

Product care instructions:
- Cleaning: after each use, remove shavings and dust to preserve the cutting edge.
- Dry thoroughly: avoid prolonged humidity to limit corrosion of the steel.
- Sharpening: even though factory sharpened, this gouge can be sharpened; use water stones or suitable abrasives to maintain an optimal edge without altering the original geometry.
- Handle maintenance: if the handle is made of wood, occasionally apply wood oil or wax to preserve comfort and durability.
- Storage: Keep the tool in a dry place or under protection to prevent oxidation of the cutting edges.

Additional information

The Series No. 11 Straight Gouge (very deep) is a wood carving tool designed to provide a linear and controlled cut. Its straight geometry allows for efficient work on both delicate and fine areas, as well as moderate to significant material removal.

Each variant offers a cutting edge width adapted to a specific use:
- 0.5 mm → 5 mm: ultra-thin and precise details and engraving in narrow areas.
- 7 mm → 12 mm: moderate removals, transitions and intermediate surfaces.
- 15 mm → 30 mm: larger material clearances or extended surfaces.

Forged from high-quality Swiss tool steel and factory-sharpened, this gouge is ready to use right out of the box. It combines robustness, precision, and durability to meet the needs of both professional sculptors and demanding amateurs.
